Fetch & Insert Workflow — Agentic AI

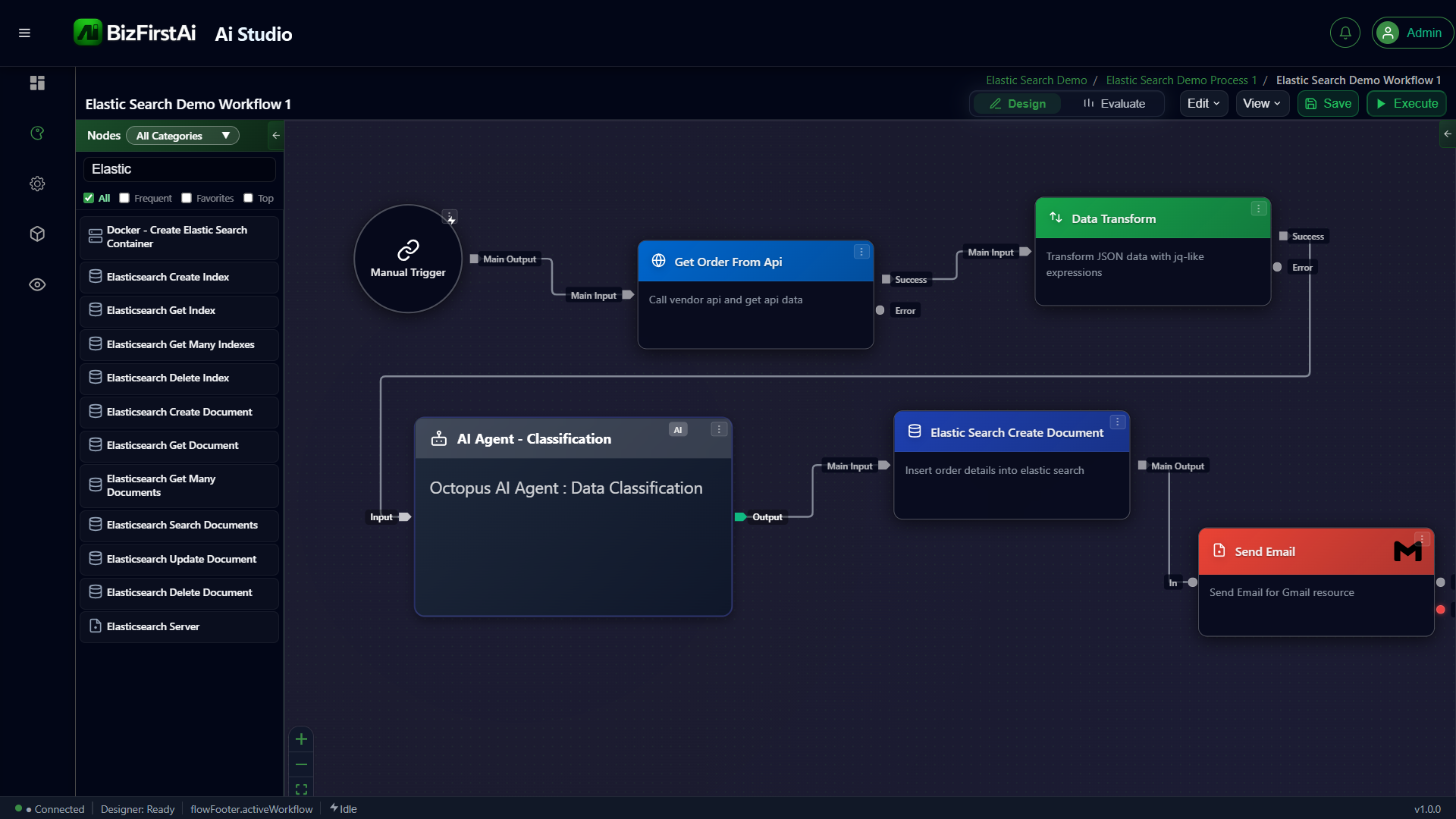

Elastic Search Demo Workflow 1 — BizFirstAI Studio canvas showing the full fetch-and-insert pipeline

Elastic Search Demo Workflow 1 — BizFirstAI Studio · Click image to view fullscreen

Flow Diagram

Elastic Search Demo Workflow 1 — Node sequence

flowchart LR A([Manual\nTrigger]) --> B[Get Order\nFrom Api] B --> C[Data\nTransform] C --> D[AI Agent\nClassification] D --> E[Elasticsearch\nCreate Document] E --> F([Send\nEmail])

Step-by-Step Flow

The workflow executes six nodes in sequence. Each node passes its output to the next via the Main Output port.

Manual Trigger

User-initiated start node. Fires the workflow on demand. No input data required — acts as the entry point for the execution graph.

Get Order From Api

Makes an HTTP call to a vendor API endpoint and retrieves raw order data. The response is passed downstream as JSON.

Data Transform

Applies a jq filter expression to reshape the raw API response — extracting, renaming, or restructuring fields into the shape required for AI classification.

AI Agent — Classification

Passes the transformed data through an Octopus AI Agent configured for data classification. The agent reasons over the payload and annotates it with category labels or metadata.

Elasticsearch Create Document

Inserts the classified order details as a new document into the configured Elasticsearch index. Uses the Elasticsearch Server satellite for connection details.

Send Email

Dispatches a notification email via the Gmail Integrator node, confirming that the order has been classified and stored in Elasticsearch.

Why jq? The Data Transform node uses jq — a lightweight, portable JSON processor. It allows zero-code field mapping between an API response shape and the shape expected by the AI Agent, making the workflow resilient to API schema changes.

Available Elasticsearch Nodes

The Studio node palette provides a complete set of Elasticsearch operations. All nodes connect to an Elasticsearch Server satellite for authentication and connection settings.

Docker — Create Elastic Search Container Elasticsearch Create Index Elasticsearch Get Index Elasticsearch Get Many Indexes Elasticsearch Online Index Elasticsearch Get Document Elasticsearch Get Many Documents Elasticsearch Search Documents Elasticsearch Update Document Elasticsearch Delete Document Elasticsearch Server

Pattern Summary

Stage	Node Type	Responsibility
Trigger	Manual Trigger	Start execution on demand
Fetch	HTTP / API node	Retrieve external data
Transform	Data Transform (jq)	Reshape payload
Classify	Octopus AI Agent	AI reasoning over data
Persist	Elasticsearch Create Document	Store enriched record
Notify	Send Email (Gmail)	Confirm completion
